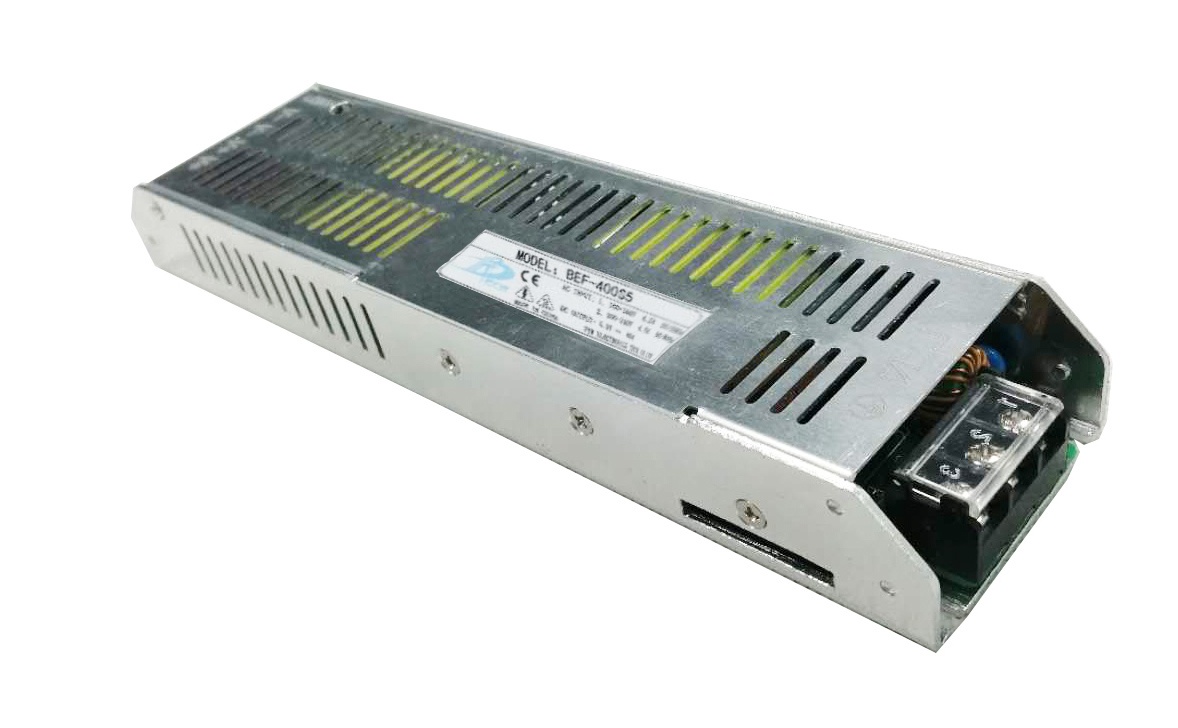

BEF-400SX Series

●  100% full load burn-in test
●  High reliability：Luxury electrolytic capacitors with high reliability
●  Wide operating ambient temperature (-40℃  ~ 80 ℃ )
●  Built-in active PFC function, PF>0.95
●  High efficiency, long life and high reliability
● AC input:180~ 264VACFeatures：

●  Protections：Overload/Over voltage/Over temperature

Specifications:
Dimension..............................235×60×30mm(L*W*H)

EMC Standards.......................EN61000-4-2,3,4,5,6,8,11

 EN61000 -3-2,3;EN55022 CLASS B
Safety Standards....................IEC/EN/UL 60950 、IEC62368、GB 4943
Withstand Voltage................I/P-O/P 3KVAC,I/P-FG 1.5KVAC,1min
Vibration................................10~500HZ,2G 10min/1cycle,period for

 60min.Each alongX,Y,Z axes

Setup 、hold up time.............Ton≤2S、Td≥10mS@230VAC
Over Voltage Protection.......115%~150%  Hiccup ,auto-recovery
Overload Protection..............105%~150% Hiccup ,auto-recovery
Working temperature ...........-40~80°C(refer to output derating curve)/auto-recovery
Input Voltage range..............185~264VAC/47~63HZ(200~370VDC)
